904L Stainless Steel Pipe Price Per Kg
Type:Seamless/Welded
Delivery condition: Annealed black surface/Polished bright surface/Q+T
Products Description
Stainless Steel 904L Seamless Pipe
ASTM A312 TP 904L Pipe supplier
904L is a highly alloyed, low carbon containing, non-stabilized austenitic stainless steel grade. Copper has been added to the alloy of 904L Stainless Steel Pipe. Hence, its resistance to strong reducing acids such as sulfuric acid is very high. The lower content of carbon makes it easier to produce the AISI 904L Welded Pipe according to specification ASTM A312. Though the content of carbon is lower, these pipes could be used for high temperature applications. The significant inclusion of nickel to the alloy of ASME SA 312 TP904L makes it possible for the pipes to have an outstanding performance even in elevated settings. Along with being a non-magnetic alloy, the Stainless Steel 904L Pipe also exhibits good resistance to stress related corrosion cracking. The presence of molybdenum in the alloy reduces the occurrence of crevice corrosion. Along with being used in applications between moderate to high temperatures, the ASTM A312 TP904L is primarily useful for general corrosion applications.
Mechanical tests like a transverse or longitudinal tension test as well as a flattening test are conducted on the 904L Seamless Pipe to determine its conformance to the tensile properties. Keeping in accordance with ASTM A312 every 904L Pipe must be furnished in a heat-treated condition, with the appropriate heat treatment temperature and fundamentals with regards to cooling or testing.
Products parameters
| EU EN |
USA - |
Germany DIN,WNr |
France AFNOR |
| X1NiCrMoCu25-20-5 | 904LN08904 | 1.4539 | Z2NCDU25-20 |
904L Stainless Steel Chemical Composition
| C | Si | Mn | Ni | P | S | Cr | Mo | Cu |
| ≤0.03 | ≤1.00 | ≤2.00 | 23.0-25.0 | ≤0.035 | ≤0.03 | 18.0-20.0 | 3.0-4.0 | 4.0-5.0 |
Available tube product forms
- Straight Pipes
- Coiled Tubes
- Seamless Pipes
Typical Applications
- Seawater cooling equipment
- Chemical processing for sulphuric, phosphoric and acetic acids
- Gas washing
- Condenser tubes
- Control and instrumentation
- Heat exchangers
Typical manufacturing specifications
- ASTM A213
- ASTM A269
- ASTM A312
- BS EN 10216 pt.5
Also individual customer specifications.
Industries predominantly using this grade
- Chemical processing
- Oil and gas
- Pharmaceutical

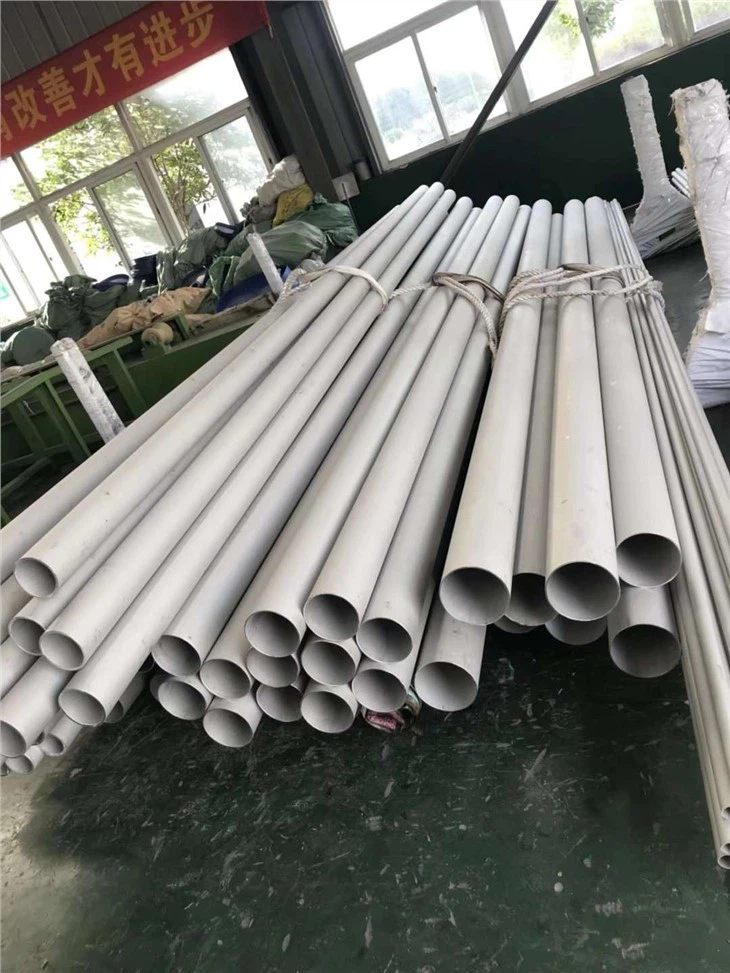

Product Picture
Our factory
Steel Making
Ingot Production
Forged Bars
Machinary
Packing & Delivery
Packing & Delivery
-
The inner size of container is below:
-- 20ft GP: 5.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft GP: 11.8m(length) x 2.13m(width) x 2.18m(high)
-- 40ft HG: 11.8m(length) x 2.13m(width) x 2.72m(high)
Our Service
1. Competitive price and quality from our own factory .
2. Best service with 24 hour`s reply .
3. Flexible payment with T/T,L/C , etc .
4. Smooth production ability(1000tons/month).
5. Quick delivery and standard exporting package.
